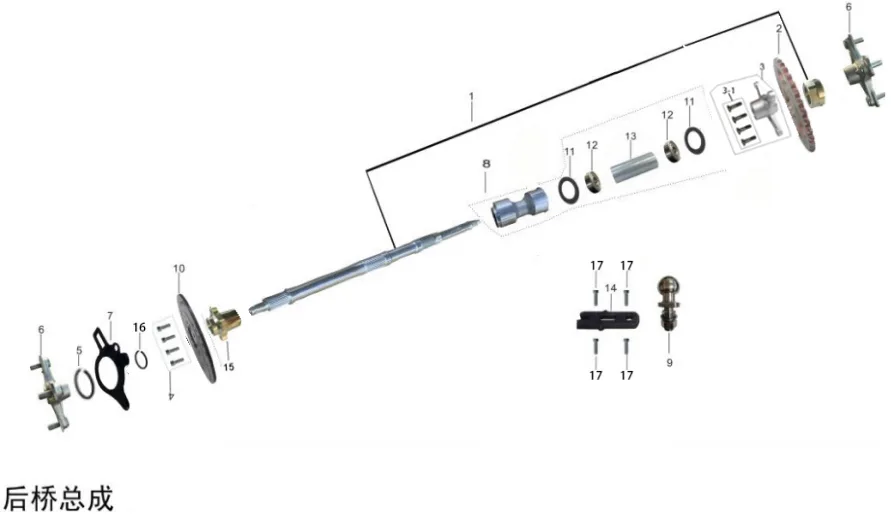

| # | Part | Part no. | Price | Stock | |
|---|---|---|---|---|---|
| 1 | Rear wheel axle | UAH 4,001 | 8 pcs | ||
| 2 | Rear steel sprocket | UAH 609 | 8 pcs | ||
| 3 | Rear sprocket holder | UAH 1,111 | 3 pcs | ||
| 3-1 | Hex socket countersunk head screw M10*20*1.25 | on order | on order | ||
| 4 | Hex socket head cap screw M8*16 | UAH 4 | 17 pcs | ||
| 4 | Hex socket head cap screw M8*16 | UAH 4 | 17 pcs | ||
| 5 | External circlip Φ70 | UAH 27 | 9 pcs | ||
| 6 | Rear wheel hub assy | UAH 999 | 25 pcs | ||
| 7 | Rear brake round mounting plate | UAH 318 | 5 pcs | ||
| 7 | Rear brake round mounting plate | UAH 318 | 9 pcs | ||
| 8 | Rear axle aluminum seat | UAH 3,235 | 26 pcs | ||
| 9 | Tow hitch with ball assy | UAH 923 | 5 pcs | ||
| 9 | Tow ball | UAH 923 | 5 pcs | ||
| 10 | Rear brake disc Φ219 | UAH 645 | 9 pcs | ||
| 11 | Oil seal TC 62*42*8 | on order | on order | ||
| 12 | Bearing 6007-2RS | on order | on order | ||
| 13 | Rear axle inner bushing | on order | on order | ||
| 14 | Tow hitch fixing plate | UAH 506 | 8 pcs | ||
| 15 | Brake disc base | UAH 1,053 | 22 pcs | ||
| 16 | Wire circlip Φ31*3 | on order | on order | ||
| 17 | Hex socket head cap screw M10*30*1.5 | on order | on order | ||
| 17 | Hex socket head cap screw M10*30*1.5 | on order | on order |
Rear axle
UAH 4,001
Rear sprocket
UAH 609
Rear sprocket seat
UAH 1,111
Hex socket head cap screw M8*16
UAH 4
Screw
UAH 4
Circlip
UAH 27
Rear hub
UAH 999
Rear axle
UAH 318
Rear brake disc mount
UAH 318
Rear axle seat
UAH 3,235
Brake disc
UAH 923
Tow ball
UAH 923
Rear brake disc
UAH 645
Brake disc mount
UAH 506
Brake disc seat
UAH 1,053
Lock nut
UAH 13
Washer
UAH 0
Spring washer
UAH 0
Bolt
UAH 13
Flange lock nut M10*1.25
UAH 13
Spring washer Φ10.5*16*3
UAH 0
Flange bolt M8*16
UAH 13
