+ ATV KAYO AU200 NEW
Control arms
3 diagrams88 parts28 in stock
Lower suspension arms assy
| # | Part | Part no. | Price | Stock | |
|---|---|---|---|---|---|
| 1 | Right lower suspension arm (black) | on order | on order | ||
| 1 | Right lower suspension arm (orange) | on order | on order | ||
| 2 | Left lower suspension arm (black) | on order | on order | ||
| 2 | Left lower suspension arm (orange) | on order | on order | ||
| 3 | Flange bolt M10*75*1.25 | on order | on order | ||
| 3 | Flange bolt M10*75*1.25 | on order | on order | ||
| 4 | Front arm rubber seal cap | UAH 40 | 6 pcs | ||
| 4 | Front arm rubber seal cap | UAH 31 | 2 pcs | ||
| 5 | Arm plastic bushing | UAH 9 | 102 pcs | ||
| 6 | Lower arm steel bushing Φ10.5*16*H52.5 | UAH 45 | 66 pcs | ||
| 7 | Flange lock nut M10*1.25 | UAH 13 | 5 pcs | ||
| 7 | Flange lock nut M10*1.25 | UAH 13 | 5 pcs | ||

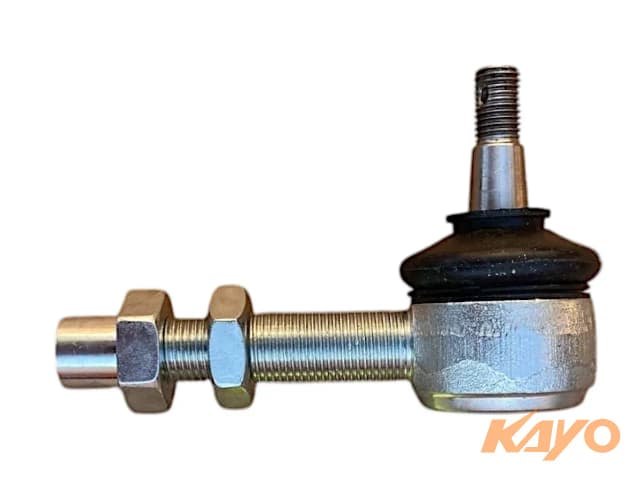

| 8 | Lower arm ball joint assy | UAH 394 | 46 pcs | ||
| 9 | Cotter pin 2.5*24 | UAH 0 | 5 pcs | ||
| 10 | Slotted nut M10*1.25 | UAH 18 | 5 pcs | ||
| 10 | Slotted nut M10*1.25 | UAH 18 | 5 pcs | ||
| 11 | Left lower arm assy (black) | on order | on order | ||
| 11 | Left lower arm assy (orange) | on order | on order | ||
| 12 | Right lower arm assy (black) | on order | on order | ||
| 12 | Right lower arm assy (orange) | on order | on order |
Upper suspension arms assy
| # | Part | Part no. | Price | Stock | |
|---|---|---|---|---|---|
| 1 | Right upper suspension arm (black) | on order | on order | ||
| 1 | Right upper suspension arm (orange) | on order | on order | ||
| 2 | Left upper suspension arm (black) | on order | on order | ||
| 2 | Left upper suspension arm (orange) | on order | on order | ||
| 3 | Flange axle Φ10*232 M10*1.25 | on order | on order | ||
| 4 | Front arm rubber seal cap | UAH 40 | 6 pcs | ||
| 4 | Front arm rubber seal cap | UAH 31 | 2 pcs | ||
| 5 | Arm plastic bushing | UAH 9 | 102 pcs | ||
| 6 | Upper arm steel bushing Φ10.2*16*L206.5 | UAH 94 | 42 pcs | ||
| 7 | Flange lock nut M10*1.25 | UAH 13 | 5 pcs | ||
| 7 | Flange lock nut M10*1.25 | UAH 13 | 5 pcs | ||
| 8 | Upper arm ball joint assy | UAH 453 | 46 pcs | ||
| 9 | Cotter pin 2.5*24 | UAH 0 | 5 pcs | ||
| 9 | Cotter pin 2.5*24 | UAH 0 | 5 pcs | ||
| 10 | Slotted nut M10*1.25 | UAH 18 | 5 pcs | ||
| 10 | Slotted nut M10*1.25 | UAH 18 | 5 pcs | ||
| 11 | Right upper arm assy (orange) | on order | on order | ||
| 11 | Right upper arm assy (black) | on order | on order | ||
| 12 | Left upper arm assy (orange) | on order | on order | ||
| 12 | Left upper arm assy (black) | on order | on order | ||
| 13 | Spring washer Φ16.5*24*3.5 | on order | on order | ||
| 13 | Spring washer Φ16.5*24*3.5 | on order | on order |

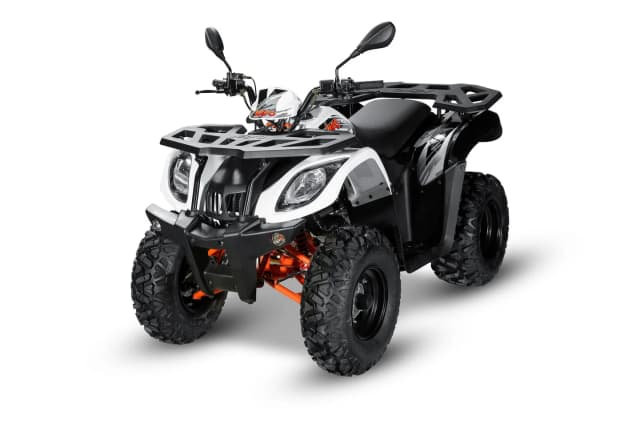

Rear suspension swingarm assy
| # | Part | Part no. | Price | Stock | |
|---|---|---|---|---|---|
| 1 | Swingarm assy AU200 | on order | on order | ||
| 1 | Swingarm assy | UAH 2,568 | 4 pcs | ||
| 2 | Needle bearing | UAH 139 | 65 pcs | ||
| 3 | Swingarm dust cap Φ16.5*43*H10 | UAH 81 | 17 pcs | ||
| 3 | Swingarm dust cap Φ17.5*43*H10 | UAH 81 | 17 pcs | ||
| 4 | Swingarm chain slider | UAH 54 | 23 pcs | ||
| 5 | Flange bolt M8*16 | UAH 13 | 10 pcs | ||
| 5 | Flange bolt M8*16 | UAH 13 | 10 pcs | ||
| 6 | Swingarm bushing Φ16*22*228 | UAH 264 | 1 pcs | ||
| 6 | Swingarm inner bushing | UAH 323 | 23 pcs | ||
| 7 | Swingarm lower guard | UAH 327 | 1 pcs | ||
| 8 | Flange bolt M6*25 | on order | on order | ||
| 8 | Flange bolt M6*25 | on order | on order | ||
| 9 | Oil cooler rubber bushing Φ9*20*10 | on order | on order | ||
| 10 | Oil cooler bushing Φ6.5*9*10 | on order | on order | ||
| 11 | Flange lock nut M16*1.5 | on order | on order | ||
| 11 | Flange lock nut M16*1.5 | on order | on order | ||
| 11 | High flange lock nut M16*1.5 | UAH 121 | 4 pcs | ||
| 12 | Chain CHOHO 530H 88L | UAH 771 | 4 pcs | ||
| 12-1 | Chain joint 530 | on order | on order | ||
| 13 | Flange axle Φ16*268 M16*1.5 | UAH 318 | 3 pcs | ||
| 13 | Flange axle Φ17*280 M16*1.5 | on order | on order | ||
| 14 | Chain cover | UAH 157 | 3 pcs | ||
| 15 | Chain cover mounting plates | on order | on order | ||
| 16 | Hex socket head cap screw M8*65 | on order | on order | ||
| 16 | Hex socket head cap screw M8*65 | on order | on order | ||
| 17 | Swingarm mounting block | on order | on order | ||
| 18 | Swingarm lower mounting block | on order | on order | ||
| 19 | Flange bolt M6*12 | on order | on order | ||
| 19 | Flange bolt M6*12 | on order | on order | ||
| 21 | Rear brake limit bushing Φ16*Φ24*16 | on order | on order | ||
| 22 | Flat bushing Φ18.5*Φ37*5 | on order | on order | ||
| 23 | Flat washer Φ8*28*1.5 | on order | on order | ||
| 23 | Flat washer Φ8*28*1.5 | on order | on order | ||
| 24 | Flange bolt M8*12 | on order | on order | ||
| 24 | Flange bolt M8*12 | on order | on order | ||
| 25 | Flat washer Φ16.5*30*1.5 | on order | on order | ||
| 25 | Flat washer Φ16.5*30*1.5 | on order | on order | ||
| 26 | Spring washer Φ16.5*24*3.5 | on order | on order | ||
| 26 | Spring washer Φ16.5*24*3.5 | on order | on order |
