+ Motorcycle KAYO TSD110

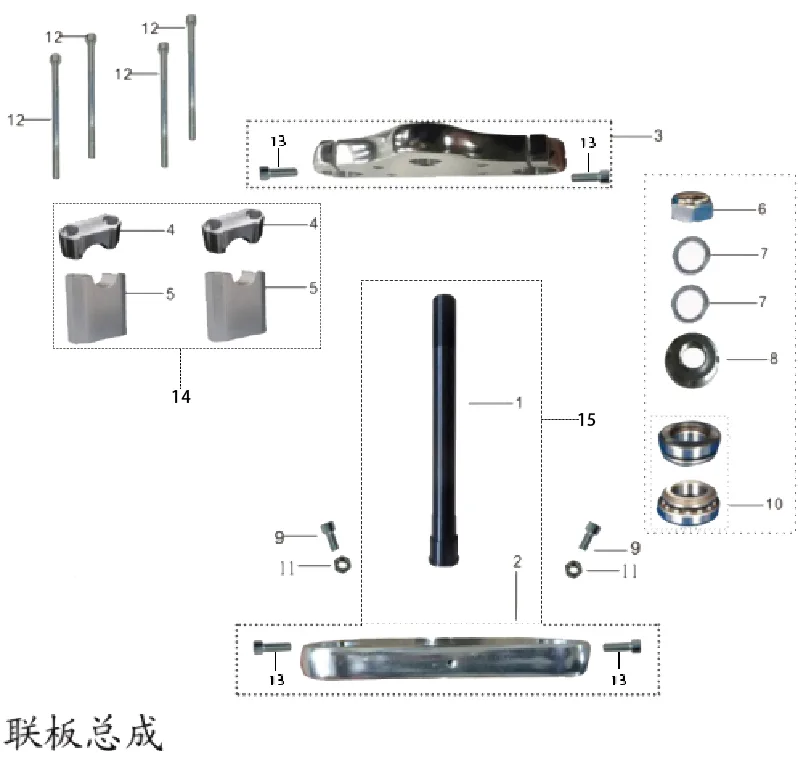

Steering column

1 diagram21 parts

#	Part	Price	Stock
1	Steering column	on order	on order
2	Lower triple clamp	on order	on order
3	Upper triple clamp	on order	on order
4	Handlebar upper clamp	on order	on order
5	Handlebar lower clamp	on order	on order
6	Steering stem upper nut	on order	on order
7	Large washer Φ23361.5	on order	on order
8	Dust cap	on order	on order
9	Hex socket head cap screw M8*12	on order	on order
9	Hex socket head cap screw M8*12	on order	on order
10	Steering column ball bearings (upper and lower)	on order	on order
11	Hex nut M8	on order	on order
11	Hex nut M8	on order	on order
12	Hex socket head cap screw M8*120	on order	on order
13	Hex socket head cap screw M8*20	on order	on order
13	Hex socket head cap screw M8*20	on order	on order
14	Upper and lower clamp kit	on order	on order
15	Lower triple clamp assy	on order	on order
