+ ATV KAYO S200

Rear axle

1 diagram9 parts2 in stock

All S200 parts →All model categories

KAYO S200

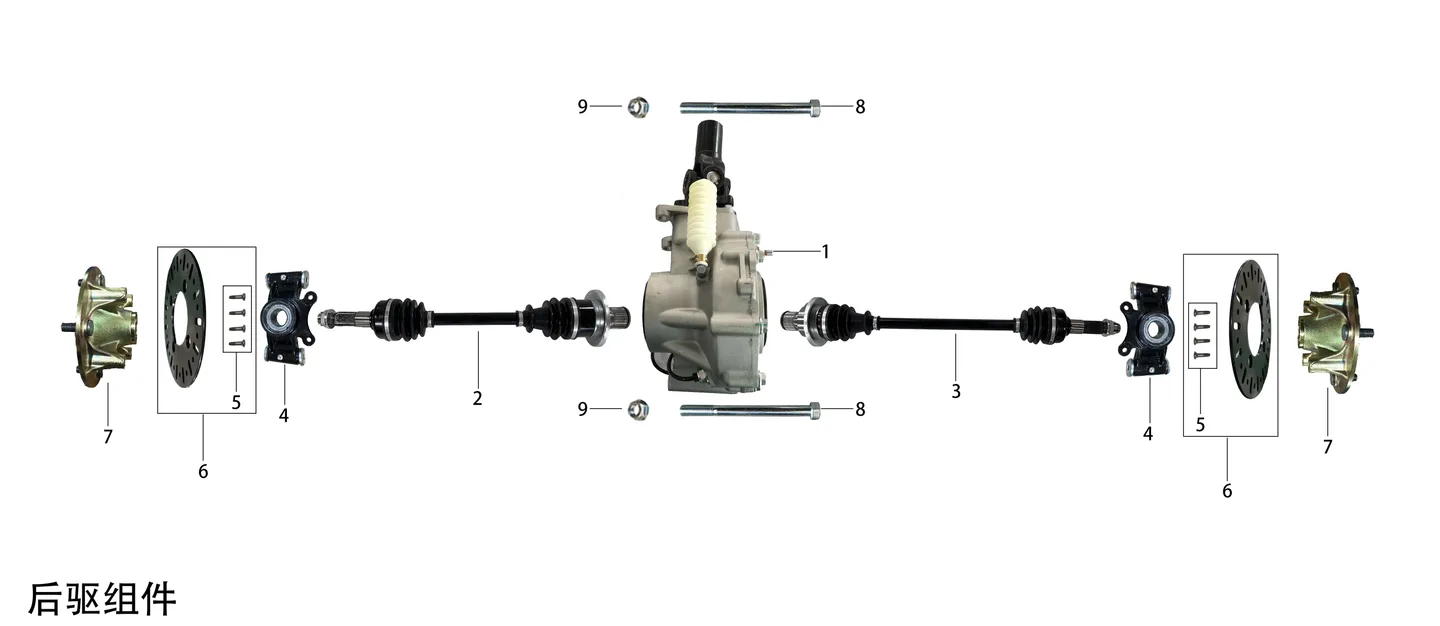

Diagram — Rear axle

#	Part	Part no.	Price	Stock
1	Rear gearbox		on order	on order
2	Rear left drive		on order	on order
3	Rear right drive		on order	on order
4	Hanger		on order	on order
5	Bolt		UAH 9	8 pcs
6	Rear brake disc		on order	on order
7	Rear hub		on order	on order
8	Bolt		on order	on order
9	Lock nut		UAH 13	5 pcs

Screw

Screw

UAH 9

Flange lock nut M10*1.25

Flange lock nut M10*1.25

UAH 13
