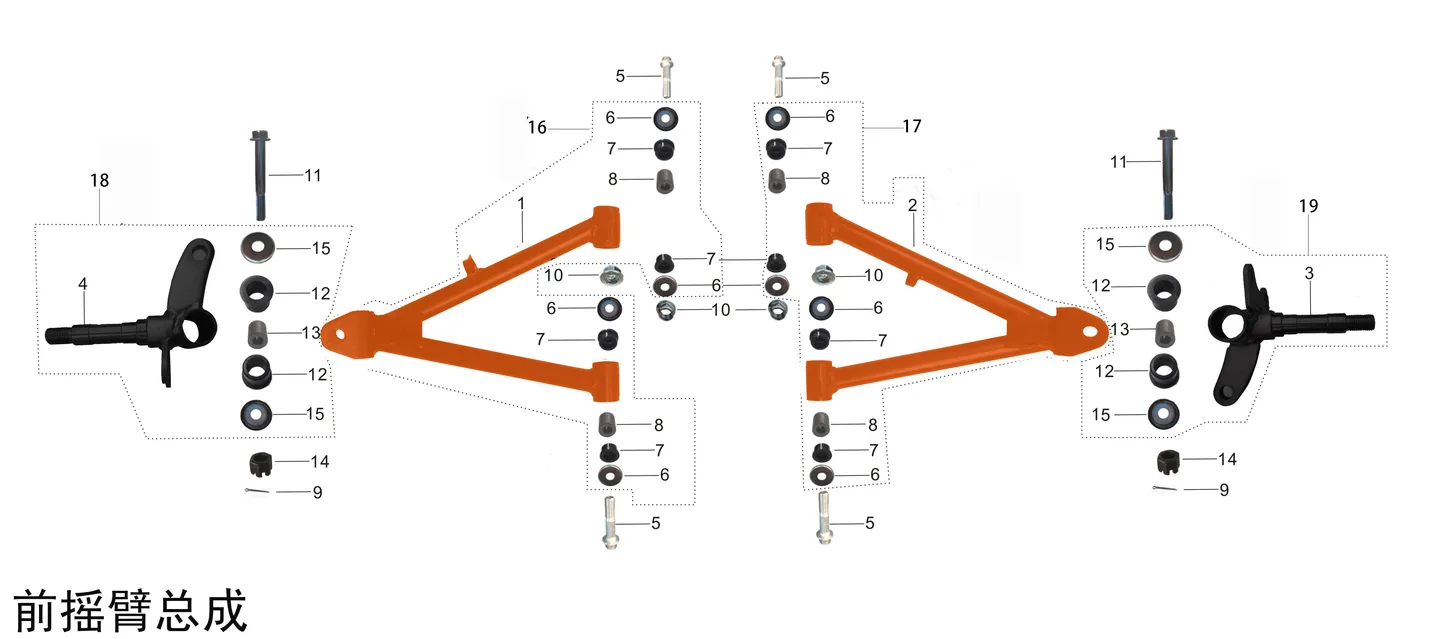

Front suspension arms assy
| # | Part | Part no. | Price | Stock | |
|---|---|---|---|---|---|
| 1 | Left lower suspension arm | on order | on order | ||
| 2 | Right lower suspension arm | on order | on order | ||
| 3 | Right steering knuckle | UAH 327 | 5 pcs | ||
| 4 | Left steering knuckle | UAH 327 | 5 pcs | ||
| 5 | Flange bolt M10*70*1.25 | on order | on order | ||
| 5 | Flange bolt M10*70*1.25 | on order | on order | ||
| 6 | Front arm rubber seal cap | UAH 40 | 6 pcs | ||
| 6 | Front arm rubber seal cap | UAH 31 | 2 pcs | ||
| 7 | Rocker arm plastic bushing | on order | on order | ||
| 8 | Front arm steel bushing | UAH 31 | 66 pcs | ||
| 9 | Cotter pin 2.5*24 | UAH 0 | 5 pcs | ||
| 9 | Cotter pin 2.5*24 | UAH 0 | 5 pcs | ||
| 10 | Flange lock nut M10*1.25 | UAH 13 | 5 pcs | ||
| 10 | Flange lock nut M10*1.25 | UAH 13 | 5 pcs | ||
| 11 | Hex head bolt M12*80*1.25 | UAH 49 | 8 pcs | ||
| 11 | Hex head bolt M12*80*1.25 | UAH 49 | 8 pcs | ||
| 12 | Arm plastic bushing | UAH 9 | 102 pcs | ||
| 13 | Steering knuckle inner bushing | UAH 36 | 10 pcs | ||
| 14 | Slotted nut M12*1.25 | UAH 22 | 15 pcs | ||
| 14 | Slotted nut M12*1.25 | UAH 22 | 15 pcs | ||
| 15 | Steering knuckle seal cover | UAH 40 | 20 pcs | ||
| 15 | Steering knuckle seal cover | UAH 40 | 20 pcs | ||
| 16 | Left lower arm assy | on order | on order | ||
| 17 | Right lower arm assy | on order | on order | ||
| 18 | Left steering knuckle assy | on order | on order | ||
| 19 | Right steering knuckle assy | on order | on order |
Right steering knuckle
UAH 327
Left steering knuckle
UAH 327
Seal
UAH 40
Rubber seal
UAH 31
Metal bushing
UAH 31
Cotter pin 2.5*24
UAH 0
Cotter pin
UAH 0
Flange lock nut M10*1.25
UAH 13
Lock nut
UAH 13
Hex head bolt M12*80*1.25
UAH 49
Hex head bolt M12*80*1.25
UAH 49
Plastic bushing
UAH 9
Tube
UAH 36
Slotted nut M12*1.25
UAH 22
Nut
UAH 22
Sealing cover
UAH 40
Steering knuckle seal cover
UAH 40

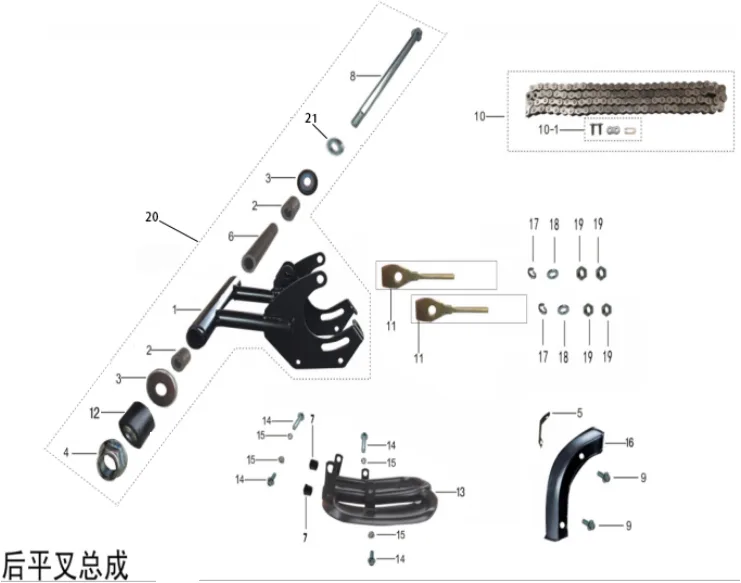

Rear suspension swingarm assy
| # | Part | Part no. | Price | Stock | |
|---|---|---|---|---|---|
| 1 | Swingarm assy | on order | on order | ||
| 2 | Swingarm spacer sleeve | UAH 72 | 10 pcs | ||
| 3 | Steering knuckle seal cover | UAH 40 | 20 pcs | ||
| 4 | Flange lock nut M12*1.25 | on order | on order | ||
| 4 | Flange lock nut M12*1.25 | on order | on order | ||
| 5 | Chain cover mounting plate 1 | on order | on order | ||
| 6 | Swingarm inner bushing | UAH 90 | 5 pcs | ||
| 7 | Chain support plug | on order | on order | ||
| 8 | Flange axle Φ12*236 M12*1.25 | on order | on order | ||
| 9 | Flange bolt M6*12 | on order | on order | ||
| 9 | Flange bolt M6*12 | on order | on order | ||
| 10 | Chain 420H (70 links) | on order | on order | ||
| 10-1 | Chain joint 420H | on order | on order | ||
| 11 | Chain tensioner M6*50 | on order | on order | ||
| 11 | Chain tensioner M8*70 | on order | on order | ||
| 12 | Swingarm chain slider | UAH 40 | 9 pcs | ||
| 13 | Chain support assy | on order | on order | ||
| 14 | Flange bolt M8*20 | on order | on order | ||
| 14 | Flange bolt M8*20 | on order | on order | ||
| 15 | Flange lock nut M8 | on order | on order | ||
| 15 | Flange lock nut M8 | on order | on order | ||
| 16 | Chain cover | on order | on order | ||
| 17 | Spring washer Φ6 | on order | on order | ||
| 17 | Spring washer Φ8*13*2 | on order | on order | ||
| 17 | Spring washer Φ8*13*2 | on order | on order | ||
| 18 | Flat washer Φ6*12*1.5 | on order | on order | ||
| 18 | Flat washer Φ8*16*1.5 | on order | on order | ||
| 18 | Flat washer Φ8*16*1.5 | on order | on order | ||
| 19 | Hex nut M8 | on order | on order | ||
| 19 | Hex nut M8 | on order | on order | ||
| 20 | Swingarm assy | on order | on order | ||
| 21 | Flat washer Φ12*24*2 | UAH 4 | 10 pcs | ||
| 21 | Flat washer Φ12*24*2 | UAH 4 | 10 pcs |
