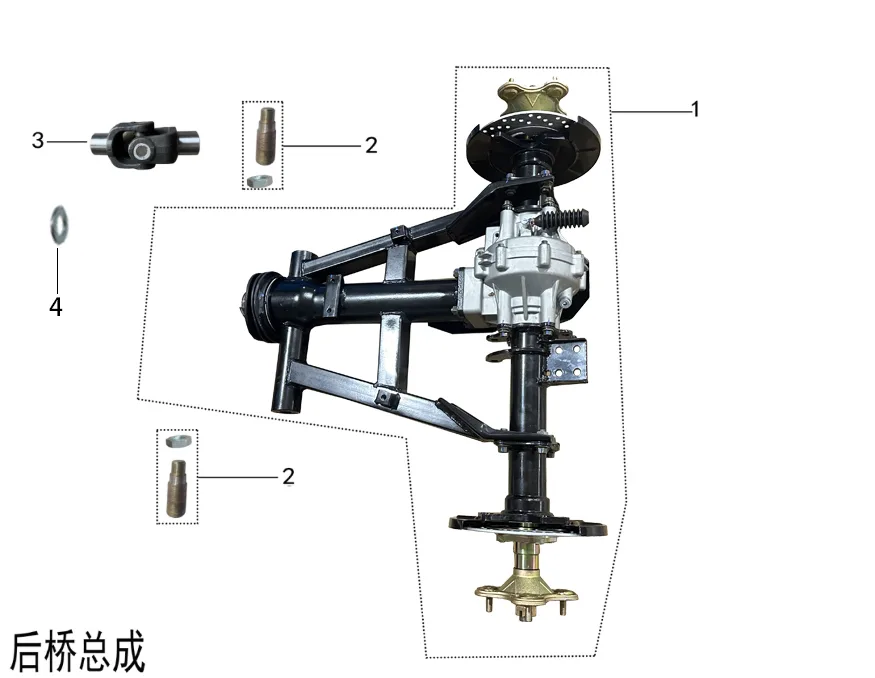

Rear axle assy
| # | Part | Part no. | Price | Stock | |
|---|---|---|---|---|---|
| 1 | Rear axle assy | UAH 37,639 | 1 pcs | ||
| 2 | Cylinder head bracket bolt | UAH 300 | 6 pcs | ||
| 3 | Universal joint | on order | on order | ||
| 3 | Universal joint | UAH 1,528 | 4 pcs | ||
| 4 | Flat washer Φ20*30*3 | on order | on order |

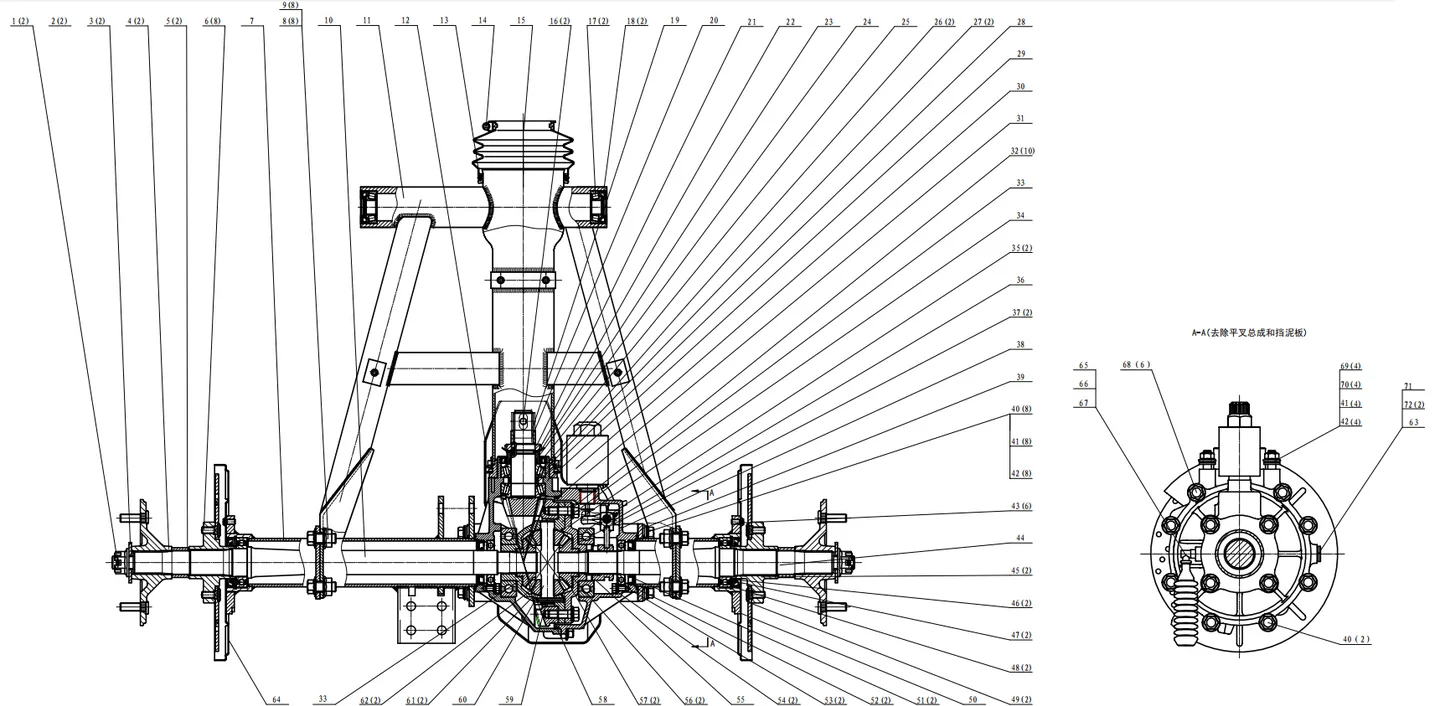

Rear axle cutaway
| # | Part | Part no. | Price | Stock | |
|---|---|---|---|---|---|
| 1 | Cotter pin | on order | on order | ||
| 2 | Slotted nut M20*1.5 | on order | on order | ||
| 3 | Large washer | on order | on order | ||
| 4 | Half shaft flange assy | on order | on order | ||
| 5 | Half shaft bushing | on order | on order | ||
| 6 | Bolt | on order | on order | ||
| 7 | Left half shaft tube assy | on order | on order | ||
| 8 | Flange bolt M12*1.25*25 | on order | on order | ||
| 9 | Flange nut M12*1.25 | on order | on order | ||
| 10 | Left half shaft | on order | on order | ||
| 11 | Swingarm assy | on order | on order | ||
| 12 | Mudguard | on order | on order | ||
| 13 | Wire circlip | on order | on order | ||
| 14 | Stopping plate | on order | on order | ||
| 15 | Rubber bushing | on order | on order | ||
| 16 | Flange bolt M8*10 | on order | on order | ||
| 17 | Tapered roller bearing | on order | on order | ||
| 18 | Shaft lip seal | on order | on order | ||
| 19 | Drive gear | on order | on order | ||
| 20 | Drive gear bushing | on order | on order | ||
| 21 | Round nut M30*1.5 | on order | on order | ||
| 22 | Lock washer | on order | on order | ||
| 23 | Oil seal retainer | on order | on order | ||
| 24 | Rectangular seal ring | on order | on order | ||
| 25 | Shaft lip seal | on order | on order | ||
| 26 | Tapered roller bearing | on order | on order | ||
| 27 | Shim 30 | on order | on order | ||
| 28 | Bearing spacer sleeve | on order | on order | ||
| 29 | Gearbox housing | on order | on order | ||
| 30 | Solenoid assy | on order | on order | ||
| 31 | O-ring | on order | on order | ||
| 32 | Flange bolt M10*1.25*30 | on order | on order | ||
| 33 | Differential housing | on order | on order | ||
| 34 | Differential housing cover | on order | on order | ||
| 35 | Radial ball bearing | on order | on order | ||
| 36 | Shift fork assy | on order | on order | ||
| 37 | Shim 1 | on order | on order | ||
| 38 | Housing cover | on order | on order | ||
| 39 | Right half shaft tube assy | on order | on order | ||
| 40 | Flange bolt M10*1.25*30 | on order | on order | ||
| 41 | Spring washer | on order | on order | ||
| 42 | Flat washer | on order | on order | ||
| 43 | Hex socket flat round head screw M6*12 | on order | on order | ||
| 44 | Right half shaft | on order | on order | ||
| 45 | Brake disc support | on order | on order | ||
| 46 | Shaft lip seal | on order | on order | ||
| 47 | Radial ball bearing | on order | on order | ||
| 48 | Internal circlip | on order | on order | ||
| 49 | Brake disc | on order | on order | ||
| 50 | Right brake disc guard | on order | on order | ||
| 51 | Shaft lip seal | on order | on order | ||
| 52 | O-ring | on order | on order | ||
| 53 | Radial ball bearing | on order | on order | ||
| 54 | Flange bolt M6*10 | on order | on order | ||
| 55 | Clutch | on order | on order | ||
| 56 | Shim | on order | on order | ||
| 57 | Half shaft gear | on order | on order | ||
| 58 | Driven gear | on order | on order | ||
| 59 | Spring pin | on order | on order | ||
| 60 | Planetary gear shaft | on order | on order | ||
| 61 | Spherical washer | on order | on order | ||
| 62 | Planetary gear | on order | on order | ||
| 63 | Washer 1 | on order | on order | ||
| 64 | Brake disc guard | on order | on order | ||
| 65 | Pipe clamp | on order | on order | ||
| 66 | Pressure equalizing valve | on order | on order | ||
| 67 | Exhaust gas outlet pipe | on order | on order | ||
| 68 | Flange bolt M8*25 | on order | on order | ||
| 69 | Stud | on order | on order | ||
| 70 | Flange nut M10*1.25 | on order | on order | ||
| 71 | Permanent magnet | on order | on order | ||
| 72 | Drain screw | on order | on order |
