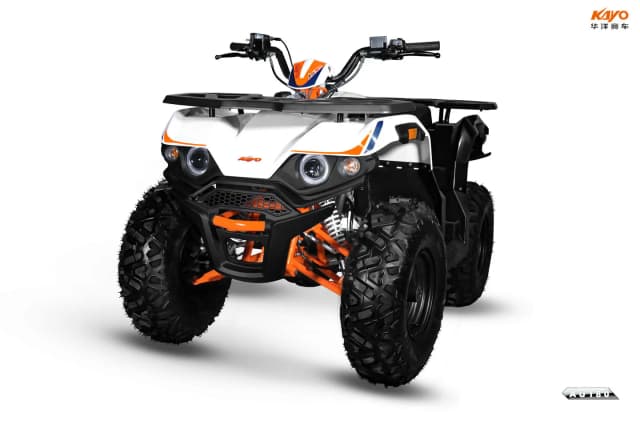

+ ATV KAYO AU200 OLD
Control arms
3 diagrams47 parts19 in stock
Lower suspension arms assy
| # | Part | Part no. | Price | Stock | |
|---|---|---|---|---|---|
| 1 | Right lower arm | on order | on order | ||
| 2 | Left lower arm | on order | on order | ||
| 3 | Flange bolt | on order | on order | ||
| 3 | Flange bolt | on order | on order | ||
| 4 | Rubber seal cap | UAH 40 | 6 pcs | ||
| 5 | Arm plastic bushing | UAH 9 | 102 pcs | ||
| 6 | Lower arm flat bushing | UAH 45 | 66 pcs | ||
| 7 | Flange lock nuts | UAH 13 | 5 pcs | ||
| 8 | Lower ball joint | UAH 394 | 46 pcs | ||
| 9 | Cotter pin | UAH 0 | 5 pcs | ||
| 10 | Slotted nuts | UAH 18 | 5 pcs | ||
| Spring washer | on order | on order |
Upper suspension arms assy
| # | Part | Part no. | Price | Stock | |
|---|---|---|---|---|---|
| 1 | Left upper arm | on order | on order | ||
| 2 | Right upper arm | on order | on order | ||
| 3 | Flange axle | on order | on order | ||
| 4 | Rubber seal cap | UAH 40 | 6 pcs | ||
| 5 | Arm plastic bushing | UAH 9 | 102 pcs | ||
| 6 | Steel buffer bushing | UAH 94 | 42 pcs | ||
| 7 | Flange lock nuts | UAH 13 | 5 pcs | ||
| 8 | Upper ball joint | UAH 453 | 46 pcs | ||
| 9 | Cotter pin | UAH 0 | 5 pcs | ||
| 10 | Slotted nuts | UAH 18 | 5 pcs | ||
| Spring washer | on order | on order |
Rear suspension swingarm assy
| # | Part | Part no. | Price | Stock | |
|---|---|---|---|---|---|
| 1 | Swingarm assy | on order | on order | ||
| 2 | Bearing | UAH 139 | 65 pcs | ||
| 3 | Dust cap | UAH 81 | 17 pcs | ||
| 4 | Chain slider | UAH 54 | 23 pcs | ||
| 6 | Swingarm bushing | UAH 264 | 1 pcs | ||
| Chain guard | UAH 712 | 6 pcs | |||
| 7 | Chain guard | UAH 327 | 1 pcs | ||
| 8 | Flange bolt | on order | on order | ||
| 9 | Oil cooler rubber cover | on order | on order | ||
| 10 | Oil cooler mounting bushing | on order | on order | ||
| 11 | Nut | on order | on order | ||
| 12 | Chain | UAH 771 | 4 pcs | ||
| 12-1 | Chain joint | on order | on order | ||
| Flange axle | on order | on order | |||
| 13 | Flange axle | UAH 318 | 3 pcs | ||
| 16 | Flat washer | on order | on order | ||
| 17 | Screw | on order | on order | ||
| 18 | Nut | on order | on order | ||
| 14 | Chain cover | UAH 157 | 3 pcs | ||
| 15 | Flange bolt | on order | on order | ||
| Screw | on order | on order | |||
| 16 | Screw | on order | on order | ||
| 17 | Mounting block | on order | on order | ||
| 18 | Mounting block | on order | on order |
