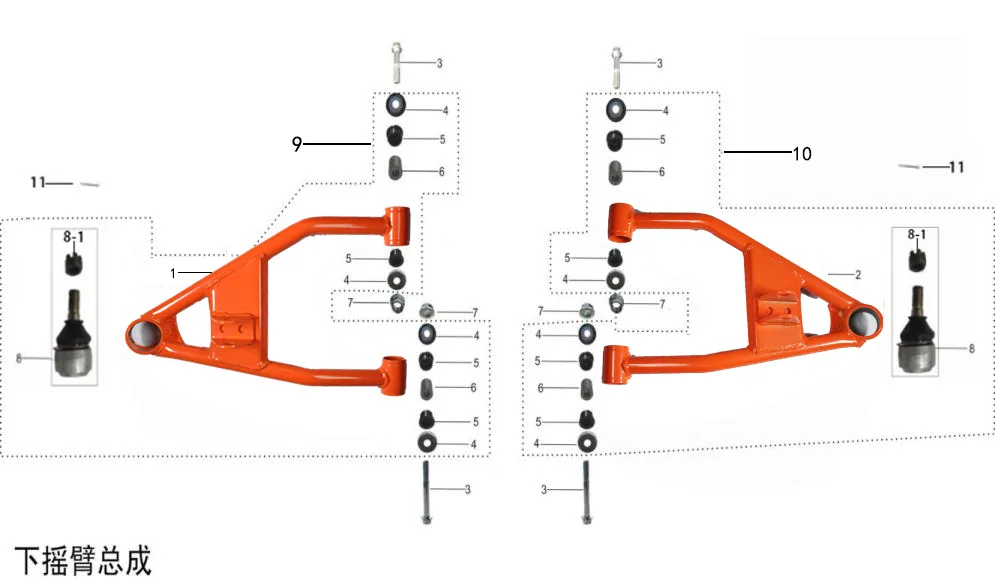

Lower suspension arms assy
| # | Part | Part no. | Price | Stock | |
|---|---|---|---|---|---|
| 1 | Right lower suspension arm | UAH 591 | 2 pcs | ||
| 2 | Left lower suspension arm | UAH 591 | 2 pcs | ||
| 3 | Flange bolt M10*70*1.25 | on order | on order | ||
| 3 | Flange bolt M10*70*1.25 | on order | on order | ||
| 4 | Front arm rubber seal cap | UAH 40 | 6 pcs | ||
| 4 | Front arm rubber seal cap | UAH 31 | 2 pcs | ||
| 5 | Rocker arm plastic bushing | on order | on order | ||
| 6 | Front arm steel bushing | UAH 31 | 66 pcs | ||
| 7 | Flange lock nut M10*1.25 | UAH 13 | 5 pcs | ||
| 8 | Arm ball joint assy | UAH 305 | 25 pcs | ||
| 8-1 | Slotted nut M10*1.25*H9 | UAH 9 | 10 pcs | ||
| 9 | Right lower arm assy | on order | on order | ||
| 10 | Left lower arm assy | on order | on order | ||
| 11 | Cotter pin 2.5*24 | UAH 0 | 5 pcs |

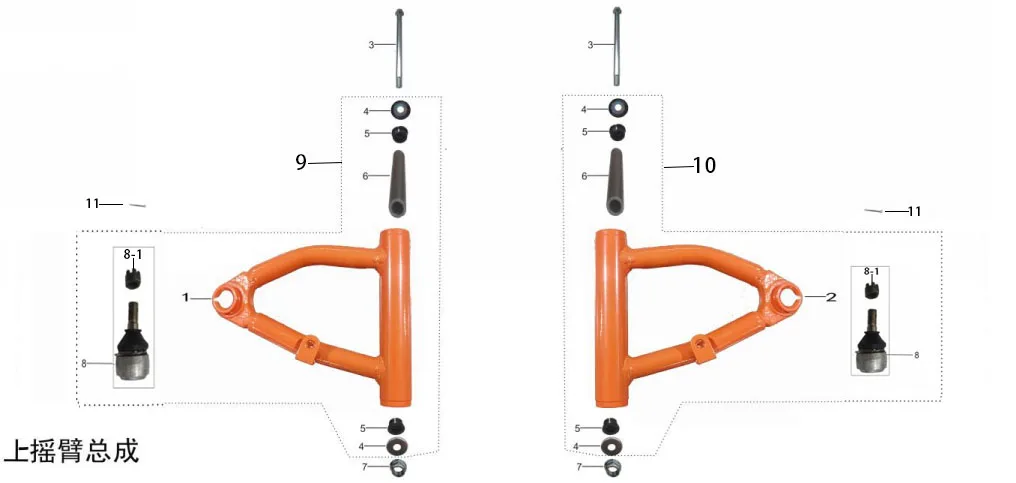

Upper suspension arms assy
| # | Part | Part no. | Price | Stock | |
|---|---|---|---|---|---|
| 1 | Right upper suspension arm | on order | on order | ||
| 2 | Left upper suspension arm | on order | on order | ||
| 3 | Flange axle | on order | on order | ||
| 3 | Flange axle | on order | on order | ||
| 4 | Front arm rubber seal cap | UAH 40 | 6 pcs | ||
| 4 | Front arm rubber seal cap | UAH 31 | 2 pcs | ||
| 5 | Arm plastic bushing | UAH 9 | 102 pcs | ||
| 6 | Upper arm steel bushing Φ10.5*16*H163 | UAH 76 | 20 pcs | ||
| 7 | Flange lock nut M10*1.25 | UAH 13 | 5 pcs | ||
| 8 | Arm ball joint assy | UAH 305 | 25 pcs | ||
| 8-1 | Slotted nut M10*1.25*H9 | UAH 9 | 10 pcs | ||
| 9 | Right upper arm assy | on order | on order | ||
| 10 | Left upper arm assy | on order | on order | ||
| 11 | Cotter pin 2.5*24 | UAH 0 | 5 pcs |

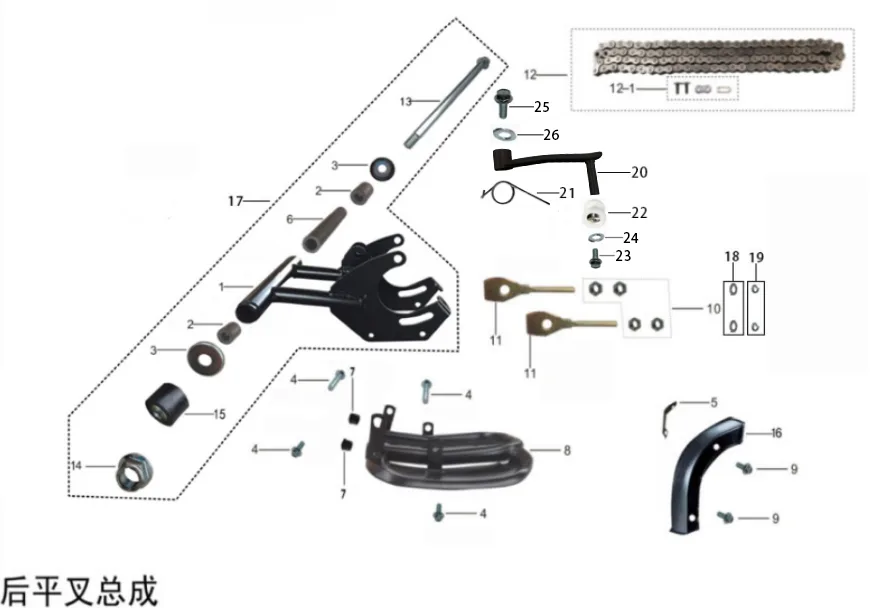

Rear suspension swingarm assy
| # | Part | Part no. | Price | Stock | |
|---|---|---|---|---|---|
| 1 | Swingarm assy L=289 | on order | on order | ||
| 1 | Swingarm assy L=289 | on order | on order | ||
| 1 | Swingarm assy L=289 | on order | on order | ||
| 2 | Swingarm spacer sleeve | UAH 72 | 10 pcs | ||
| 3 | Steering knuckle seal cover | UAH 40 | 20 pcs | ||
| 4 | Hex socket button head screw M8*16 | on order | on order | ||
| 5 | Chain cover mounting plate 1 | on order | on order | ||
| 6 | Swingarm inner bushing | UAH 90 | 5 pcs | ||
| 7 | Chain support plug | on order | on order | ||
| 8 | Chain support assy | on order | on order | ||
| 9 | Flange bolt M6*12 | on order | on order | ||
| 9 | Flange bolt M6*12 | on order | on order | ||
| 10 | Hex nut M8 | on order | on order | ||
| 10 | Hex nut M8 | on order | on order | ||
| 11 | Chain tensioner Φ13*M8*85 | UAH 54 | 8 pcs | ||
| 12 | Chain 420H (86 links) | UAH 403 | 5 pcs | ||
| 12-1 | Chain joint 420H | on order | on order | ||
| 13 | Flange axle Φ12*236 M12*1.25 | on order | on order | ||
| 13 | Flange axle | on order | on order | ||
| 14 | Flange lock nut M12*1.25 | on order | on order | ||
| 15 | Swingarm chain slider | UAH 40 | 9 pcs | ||
| 16 | Chain cover | on order | on order | ||
| 17 | Swingarm assy (kit) | on order | on order | ||
| 17 | Swingarm assy (kit) | on order | on order | ||
| 17 | Swingarm assy (kit) | on order | on order | ||
| 18 | Spring washer Φ8*13*2 | on order | on order | ||
| 19 | Flat washer Φ8*16*1.5 | on order | on order | ||
| 19 | Flat washer Φ8*16*1.5 | on order | on order | ||
| 20 | Tensioner bracket | on order | on order | ||
| 20 | Tensioner bracket | on order | on order | ||
| 21 | Tensioner torsion spring | on order | on order | ||
| 22 | Chain tensioner roller | on order | on order | ||
| 23 | Flange bolt M6*12 | on order | on order | ||
| 24 | Flat washer | on order | on order | ||
| 24 | Flat washer | on order | on order | ||
| 25 | Flange bolt M8*12 | on order | on order | ||
| 26 | Flat washer | on order | on order |
